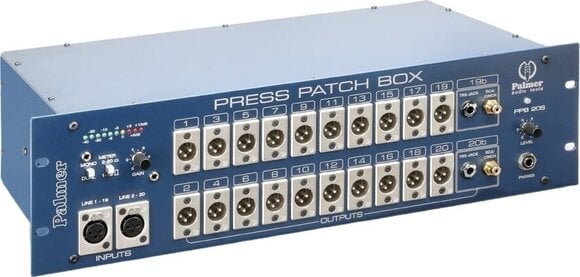

Palmer PPB 20S Patch panel

Audio splitter, 20 channel sterero/10 channel mono. Instead of having one microphone and one line input the stereo version has two line inputs. For press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs. All inputs and outputs are balanced transformer isolated. Line input and outputs. Adjustable input gain (-8 to +25dB). Level meter. Headphone output to monitor the input level, headphone volume adjustable. Individual ground lift. switches for each output. Ground Lift switch for the input. Expandable setup thanks to the Bus In/Out sockets. Dimensions: 480 x 200 x 135 mm. (19" x 3 U) Weight: 9.09 kg

Product type:Splitters
Type:mic & line split
Split type:2 in 10 + 10
Channels:2
Inputs:2
Input connectors:XLR
Max. input level:+ 20 dB
Adjustable input:yes
Number of split-outputs per canal:10
THRU outputs/channel:1
Max. output level:+ 20 dB
Output connectors:6.3 mm Jack, XLR, RCA
Adjustable output:no
Transformer isolated outputs:yes
Controls:attenuator, ground lift, input gain, mic/line switch, phones level, Power
Operating voltage:integrated (115 / 230 V)
Cabinet material:sheet steel
Cabinet surface:powder coated
Width:480 mm
Width:19"
Depth:200 mm
Height:135 mm
Height:3 U
Weight:9.09 kg



Suitability
Power supply

Power Supply

240V

Accessory

UK/EU Power supply included

Yes

Country

Made in

Germany
