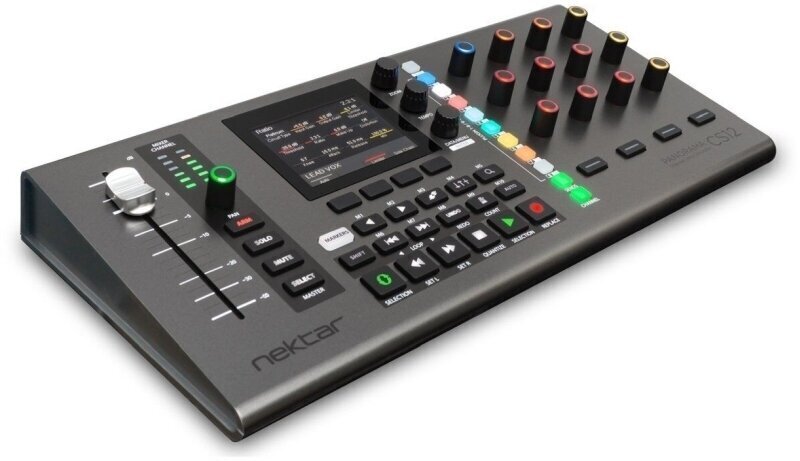

Panorama CS12 does what no other controller can do: Give full control of all Logic Pro channel strip parameters including plugins. There is nothing vanilla about Panorama CS12. The entire workflow is designed from the ground up, which enables astonishing features, with a workflow never seen on a control surface before.

Highlights:

• Long-throw 100mm motorized fader with up to 14 bit control resolution.
• Set volume and insert automation point at the current play position, by touching the fader
• Dedicated pan control with channel color illumination, arm, mute and solo.
• Option to use fader or pan control to click and adjust any parameter in the current channel, including plugins.
• Advanced direct insert plugin control of both AU and Logic Pros included insert effects.
• Control up to 12 sends per channel.
• Instrument control via Selected parameter, SmartControl or Logic Pro learn user pages.
• 11 color illuminated buttons for selection of plugin slots, sends and channel menus.
• Fine control at up to 10 (14 bit) times normal resolution.
• Zoom and tempo controls
• Access to 26 transport, navigation and Logic Pro functions.

A 100mm ALPS motorized fader follows the selected mixer channel when you work. With up to 14 bit resolution, you get detailed control with touch sensing enabling automation override and update captures in real time.

Paired with a dedicated pan control, as well as buttons for solo, mute and record arm, you have instant access to all main mixer parameters on the selected channel.

Control any parameter by simply clicking on it. The 100mm ALPS fader immediately jumps to the clicked parameters position and you take over from there. The fader or pan rotary, can be used to control any parameter in the currently selected Logic Pro channel, at any time.

Activate the Select button and the motorized fader now controls any parameter you click. Any mixer channel, instrument or insert effect plugin parameters. Click, control, click control. Super easy.

Recording automation can get messy with lots of data generated even when a simple fader is needed. Panorama CS12 solves the problem by giving you the option to insert automation points.

Touch the fader, set the value with the fader, and done!.

Jump to the next position in the timeline and insert another automation point. Clean, easy and fast.

Panorama CS12 excels at controlling plugins. You can control any plugin without looking at the plugins’ UI so you can focus on creating, composing and editing.

Many commonly used plugins are pre-mapped including of course Logic Pro’s own. Panorama CS12 dedicates 12 RGB illuminated 360 pots, 4 display buttons and an additional 4 RGB LED buttons to plugin control. Every control can be assigned on multiple pages ensuring as a complete plugin experience, with no parameter left behind.

Via the  ControlCore mapping system, it stores all settings in unique files so they can be ported to other computer systems and ensure compatibility with other DAWs in the future.

Any plugin that presents its parameters for automation in Logic Pro, can be controlled from Panorama CS12. That includes Logic Pro’s own plugins and any AU plugin hosted in Logic Pro.

CS12 control insert plugins like no controller has ever done before.  The 8 plugin slot select buttons are illuminated when plugins are present in the first 8 slots and the top button toggles between slots 1-8/9-16. Press a button and control the insert plugin immediately. Press another button and now control that plugin.

A plugin quick learn feature enables assignments on the fly. It’s as simple as moving a parameter and moving a control to complete assignment. And while you are at it, change the LED color of the control too.

For the ultimate in control mapping, use the included Nektarine application/plugin. Assign parameters to controls using drag and drop, create your page structure and name parameters and pages so they are optimized for CS12. Once saved, plugin maps are picked up by ControlCore for use with CS12.
